General specifications

Product name

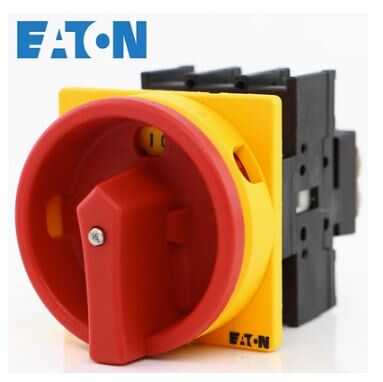

Eaton Moeller® series T0 Main switch

Part no.

T0-2-1/I1/SVB-SW

EAN

4015082071486

Product Length/Depth

137 millimetre

Product height

110 millimetre

Product width

80 millimetre

Product weight

0.3 kilogram

Certifications

IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3

Product Tradename

T0

Product Type

Main switch

Product Sub Type

None

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Features & Functions

Features

Version as maintenance-/service switch
Version as main switch

Fitted with:

Black rotary handle and locking ring

Functions

Interlockable
STOP function

Locking facility

Lockable in the 0 (Off) position

Number of poles

3

General information

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

400,000 Operations

Mounting method

Surface mounting

Mounting position

As required

Number of contact units

2

Operating frequency

1200 Operations/h

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Suitable for

Ground mounting

Switching angle

90 °
