Cầu dao cách ly có hộp Eaton P1-32/I2/SVB 32A
Giá gốc: 1.200.000₫
Giá khuyến mại 1.020.000₫
General specifications
Product name

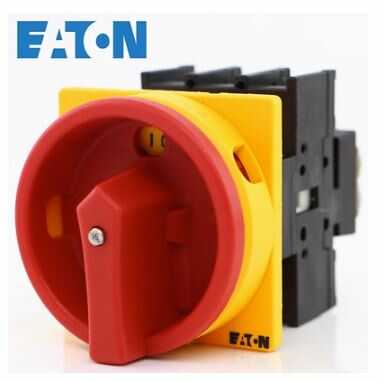

Eaton Moeller® series P1 Main switch
Part no.
P1-32/I2/SVB
EAN
4015082073145
Product Length/Depth
115 millimetre
Product height
180 millimetre
Product width
100 millimetre
Product weight
0.443 kilogram
Certifications
VDE 0660
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
Product Tradename
P1
Product Type
Main switch
Product Sub Type
None
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
Features & Functions
Features
Version as maintenance-/service switch
Version as main switch
Version as emergency stop installation
Fitted with:
Red rotary handle and yellow locking ring
Functions
Emergency switching off function
Interlockable
Locking facility
Lockable in the 0 (Off) position
Number of poles
3
General information
Accessories
Auxiliary contact or neutral conductor fitted by user.
Degree of protection
NEMA 12
Degree of protection (front side)
IP65
