Product name

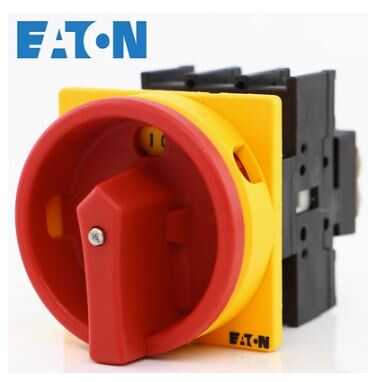

Eaton Moeller® series P3 Main switch

Part no.

P3-63/I4/SVB-NA

EAN

4015082558970

Product Length/Depth

139 millimetre

Product height

240 millimetre

Product width

160 millimetre

Product weight

1.065 kilogram

Certifications

CSA Class No.: 3211-05
UL
CSA File No.: 012528
IEC/EN 60947
UL 60947-4-1
CSA
IEC/EN 60204
CE
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
VDE 0660
UL File No.: E36332
UL Category Control No.: NLRV
IEC/EN 60947-3

Product Tradename

P3

Product Type

Main switch

Product Sub Type

None

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second
UL/CSA

Features & Functions

Features

Version as emergency stop installation
Version as main switch
Version as maintenance-/service switch

Fitted with:

Red rotary handle and yellow locking ring

Functions

Interlockable
Emergency switching off function

Number of poles

3

General information

Accessories

Auxiliary contact or neutral conductor fitted by user.

Degree of protection

NEMA 12

Degree of protection (front side)

IP65
