General specifications

Product name

Eaton Moeller® series P3 Main switch

Part no.

P3-63/EA/SVB

EAN

4015080316077

Product Length/Depth

128 millimetre

Product height

102 millimetre

Product width

87 millimetre

Product weight

0.426 kilogram

Certifications

UL 60947-4-1
UL File No.: E36332
IEC/EN 60204
CSA-C22.2 No. 94
CSA File No.: 012528
CSA Class No.: 3211-05
IEC/EN 60947
IEC/EN 60947-3
CE
CSA
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
VDE 0660

Product Tradename

P3

Product Type

Main switch

Product Sub Type

None

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Features & Functions

Features

Version as emergency stop installation
Version as maintenance-/service switch
Version as main switch

Fitted with:

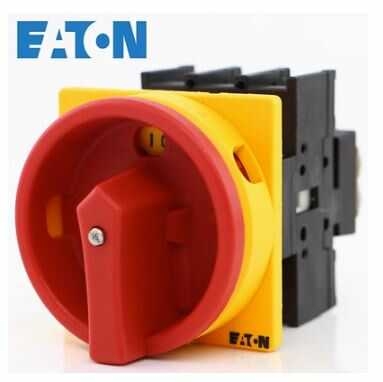

Red rotary handle and yellow locking ring

Functions

Emergency switching off function
Interlockable

Locking facility

Lockable in the 0 (Off) position

Number of poles

3

General information

Accessories

Auxiliary contact or neutral conductor fitted by user.

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

100,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Operating frequency

1200 Operations/h

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Safe isolation

440 V AC, Between the contacts, According to EN 61140

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms

Suitable for

Branch circuits, suitable as motor disconnect, (UL/CSA)
Front mounting 4-hole
