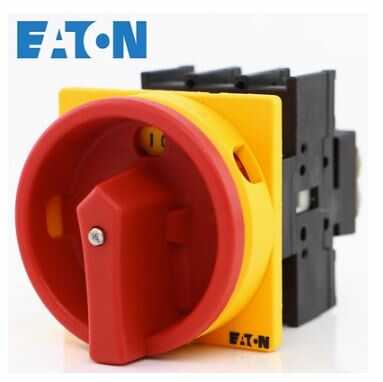

Cầu dao cách ly có hộp Eaton P3-100/EA/SVB 100A

Giá gốc: 2.100.000₫

Giá khuyến mại 1.950.000₫

General specifications

Product name

Eaton Moeller® series P3 Main switch

Part no.

P3-100/EA/SVB/2HI11

EAN

4015080127239

Product Length/Depth

130 millimetre

Product height

90 millimetre

Product width

90 millimetre

Product weight

0.506 kilogram

Certifications

UL Category Control No.: NLRV
CSA
IEC/EN 60947
UL 60947-4-1
UL
CSA Class No.: 3211-05
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CSA File No.: 012528
CE
IEC/EN 60204
IEC/EN 60947-3
VDE 0660

Product Tradename

P3

Product Type

Main switch

Product Sub Type

None

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Features & Functions

Features

Version as emergency stop installation
Version as maintenance-/service switch
Version as main switch

Fitted with:

Red rotary handle and yellow locking ring

Functions

Interlockable
Emergency switching off function

Number of poles

3

General information

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

100,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Operating frequency

1200 Operations/h

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC
