General specifications

Product name

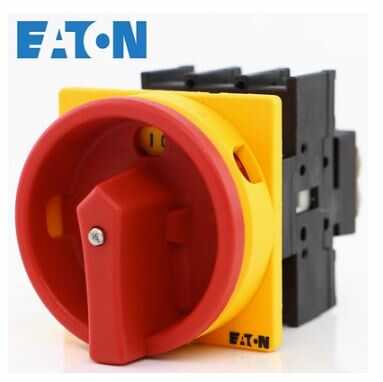

Eaton Moeller® series T0 Main switch

Part no.

T0-2-1/EA/SVB

EAN

4015080388739

Product Length/Depth

111 millimetre

Product height

74 millimetre

Product width

65 millimetre

Product weight

0.142 kilogram

Certifications

IEC/EN 60947-3
CSA File No.: 012528
VDE 0660
CE
CSA Class No.: 3211-05
UL
UL 60947-4-1
IEC/EN 60204
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947
CSA

Product Tradename

T0

Product Type

Main switch

Product Sub Type

None

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Features & Functions

Features

Version as maintenance-/service switch
Version as emergency stop installation
Version as main switch

Fitted with:

Red rotary handle and yellow locking ring

Functions

Interlockable
Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Number of poles

Three-pole

General information

Degree of protection

NEMA 12

Degree of protection (front side)

IP65

Lifespan, mechanical

400,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Number of contact units

2

Operating frequency

1200 Operations/h

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC
