General specifications

Product name

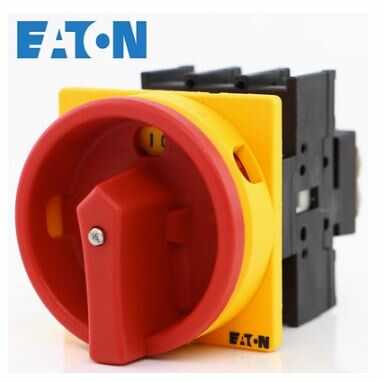

Eaton Moeller® series P1 Main switch

Part no.

P1-32/EA/SVB

EAN

4015080814382

Product Length/Depth

120 millimetre

Product height

70 millimetre

Product width

49 millimetre

Product weight

0.192 kilogram

Certifications

VDE 0660
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL File No.: E36332
UL
CSA
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60947
CE

Product Tradename

P1

Product Type

Main switch

Product Sub Type

None

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Features & Functions

Features

Version as emergency stop installation
Version as main switch
Version as maintenance-/service switch

Fitted with:

Red rotary handle and yellow locking ring

Functions

Interlockable
Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Number of poles

3

General information

Accessories

Auxiliary contact or neutral conductor fitted by user.

Degree of protection

NEMA 1

Degree of protection (front side)

IP65
