General specifications

Product name

Eaton Moeller® series P1 Main switch

Part no.

P1-25/EA/SVB

EAN

4015080410973

Product Length/Depth

119 millimetre

Product height

65 millimetre

Product width

65 millimetre

Product weight

0.19 kilogram

Certifications

CSA File No.: 012528
CE
UL 60947-4-1
VDE 0660
UL
UL Category Control No.: NLRV
UL File No.: E36332
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
CSA Class No.: 3211-05
CSA

Product Tradename

P1

Product Type

Main switch

Product Sub Type

None

Catalog Notes

Rated Short-time Withstand Current (Icw) for a time of 1 second

Features & Functions

Features

Version as maintenance-/service switch
Version as main switch
Version as emergency stop installation

Fitted with:

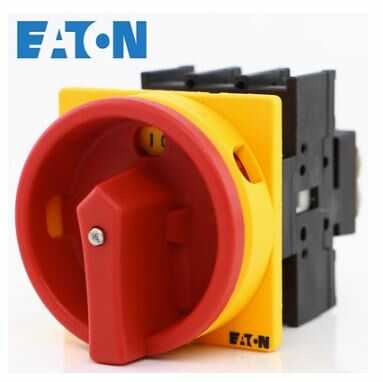

Red rotary handle and yellow locking ring

Functions

Interlockable
Emergency switching off function

Locking facility

Lockable in the 0 (Off) position

Number of poles

3

General information

Accessories

Auxiliary contact or neutral conductor fitted by user.

Degree of protection

NEMA 12

Degree of protection (front side)

IP65
