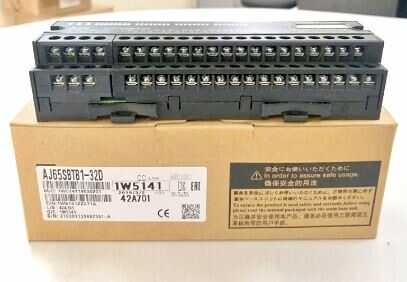

Module CC-link Mitsubishi AJ65SBTB1-32DT2
Giá gốc: 2.800.000₫
Giá khuyến mại 2.600.000₫
Configured Specifications
| Number Of Inputs | 16 | Rated Input Voltage(V) | DC24V |
|---|---|---|---|
| Number of Outputs | 16 | Rated load voltage(V) | DC24V |
| Representative Standard | CE / UL | Rated input current(mA) | 7mA |
| Input answer time | 1.5ms | Leakage current when OFF(mA) | 0.1mA |
| Output answer time | 1.5ms | Terminal shape | Screw terminal block |
| Thermal Protection/ Short Circuit Protection/ Protective Function/ Fuse/ Surge Protector | NA | Type of unit | DC Input/Transistor Output (Sink) |
| Input target | Positive Common | External connection | 1-line type/1-line type |
| I/O unit power supply current | 60mA | Rated load current (rated opening/closing current) | 0.5A |
