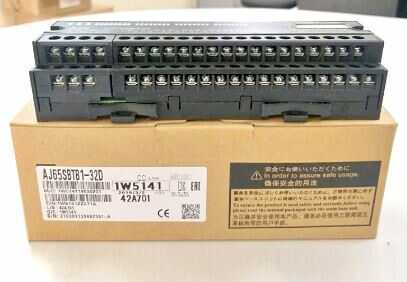

Module CC-link Mitsubishi AJ65SBTB1-32D1
Giá gốc: 2.650.000₫
Giá khuyến mại 2.500.000₫
DC input module
Input: 32 points, 24 V DC, positive/negative common, 1-wire, response time: 0.2 ms
External interface: screw terminal block
This remote module is intended to be installed near the control target.
The main advantages are reduced cabling and the capability of acquiring data and operation results of individual machine modules autonomously.
Technical details
- Manufacturer : Mitsubishi Electric
- Product No. : AJ65SBTB1-32D1
- Product type : 24VDC Input Module (positive common (sink), negative common (source) loading)
- No of output points : 32
- Isolation method : Photocoupler
- Rated load voltage : 24 V DC
- Operating voltage range : 19.2 to 26.4VDC (ripple ratio: within 5%)
- Input type : Positive/negative common shared type (sink/source shared type)
- Number of occupied stations : 32-point assignment/station (32 points used)
- Protection degree : IP2X
- Weight : 0.25 Kg
- Shipping weight : 1.5 Kg
