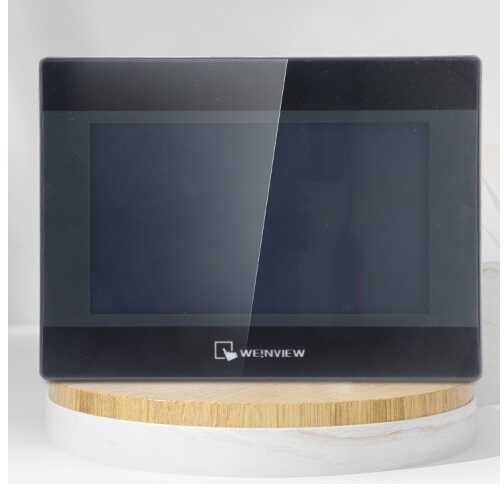

Màn Hình HMI WEINTEK TK8070iH 3WV
Giá gốc: 2.800.000₫
Giá khuyến mại 2.600.000₫
New Original MT6070iH2WV MT6070iH3WV TK6070iH2WV TK6070iH3WV 7 Inch HMI Touch Screen MT6070iH 2WV MT6070iH 3WV TK6070iH 2WV TK6070iH 3WV
Display |
Display type |
7 "TFT |
Resolution (WxH dots) |
800 x 480 |
|
Display brightness (cd/m2) |
350 |
|
Contrast |
The 500:1 |
|
Backlight type |
LED |
|
Backlight life |
30,000Hours |
|
Display color |
65536 |
|
Touch panel |
Type |
4Wire analog resistive |
Memory |
FlashStorage (MB) |
128 |
DRAM (MB) |
64 |
|
Processor |
|
32Bit RISC 400MHz |
I/OCommunication port |
USB Client |
USB 2.0 x 1 |
COMEven the interface |
COM1 RS232, COM2 RS485 2W/4W |
|
Perpetual calendar |
|
Built-in |
Power supply |
Input power |
24±20%VDC |
Power consumption |
300mA@24VDC |
|
Withstand voltage |
500VAC (1Minutes) |
|
Insulation resistance |
More than50MW at 500VDC |
|
Seismic |
10 to 25Hz(X,Y,Z Directions 2G30Minutes) |
|
Specifications |
Housing material |
Industrial plastics |
Overall dimensions WxHxD |
200 x 146 x41.8mm |
|
Hole size |
192 x138mm |
|
Weight (kg) |
About0.8 kg |
|
Operating environment |
rating |
IP65 |
Storage ambient temperature |
-20°~60°C(-4° ~140°F) |
|
The use of ambient temperature |
0° ~50°C(32° ~122°F) |
|
Use ambient humidity |
10% ~ 90% @40°C, No condensation |
|
Using the software |
|
Limited to Chinese Simplified versionEB8000 V4.3.4Or later |
