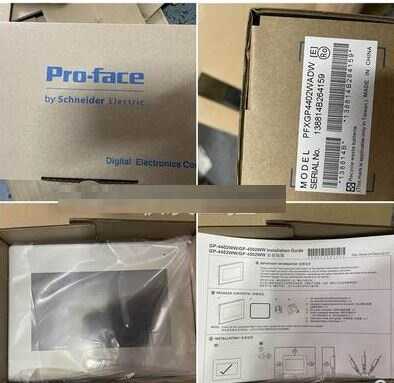

Màn hình cảm ứng Proface PFXGP4301TAD

Giá gốc: 19.000.000₫

Giá khuyến mại 18.000.000₫

Model: PFXGP4401WADW

Display type


Display size



800 x 480 pixels (WVGA)

Effective display area

W152.4 x H91.4 mm [W6.0 x H3.6 in.]

Display colors

65,536 colors (No blink) / 16,384 colors (Blink)


White LED (Not user replaceable. When replacement is required, contact your local distributor.)

Backlight service life

50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)

Brightness control

8 Levels (Adjusted with touch panel or software)

Touch panel type

Resistive Film (analog)

Touch panel resolution

1,024 x 1,024

Touch panel lifetime

1,000,000 times or more

Rated input voltage

24 Vdc

Input voltage limits

19.2 to 28.8 Vdc

Allowable voltage drop

5 ms or less

Power consumption

3.4 W or less

In-rush current

30 A or less

Noise immunity

Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)

Voltage endurance

1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)

Insulation resistance

500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
