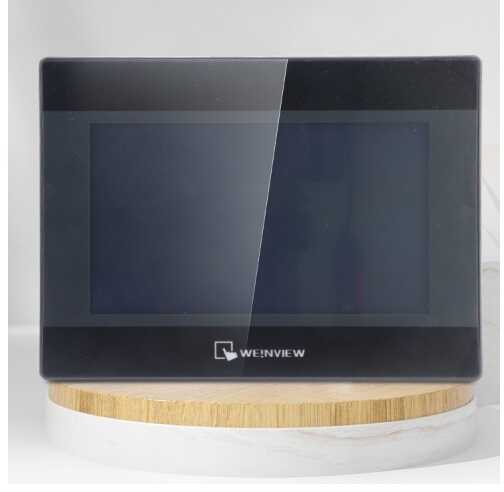

Màn Hình HMI WEINTEK TK6071iQ 1WV

Giá gốc: 3.000.000₫

Giá khuyến mại 2.900.000₫

New Original MT6070iH2WV MT6070iH3WV TK6070iH2WV TK6070iH3WV 7 Inch HMI Touch Screen MT6070iH 2WV MT6070iH 3WV TK6070iH 2WV TK6070iH 3WV



Display

Display type

7 "TFT

Resolution (WxH dots)

800 x 480

Display brightness (cd/m2)

350

Contrast

The 500:1

Backlight type

LED

Backlight life

30,000Hours

Display color

65536

Touch panel

Type

4Wire analog resistive

Memory

FlashStorage (MB)

128

DRAM (MB)

64

Processor



32Bit RISC 400MHz

I/OCommunication port

USB Client

USB 2.0 x 1

COMEven the interface

COM1 RS232, COM2 RS485 2W/4W

Perpetual calendar



Built-in



Power supply

Input power

24±20%VDC

Power consumption

300mA@24VDC

Withstand voltage

500VAC (1Minutes)

Insulation resistance

More than50MW at 500VDC

Seismic

10 to 25Hz(X,Y,Z Directions 2G30Minutes)



Specifications

Housing material

Industrial plastics

Overall dimensions WxHxD

200 x 146 x41.8mm

Hole size

192 x138mm

Weight (kg)

About0.8 kg

Operating environment

rating

IP65

Storage ambient temperature

-20°~60°C(-4° ~140°F)

The use of ambient temperature

0° ~50°C(32° ~122°F)

Use ambient humidity

10% ~ 90% @40°C, No condensation

Using the software



Limited to Chinese Simplified versionEB8000 V4.3.4Or later
