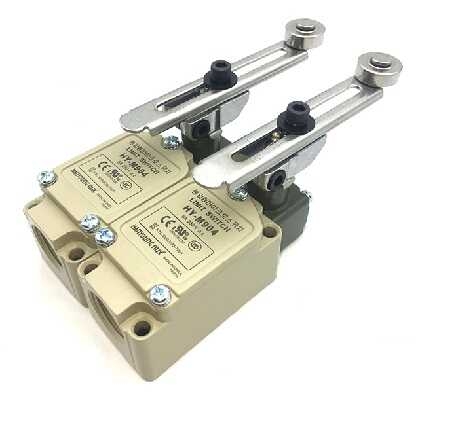

Công tắc hành trình Hanyoung HY-M902

Giá gốc: 320.000₫

Giá khuyến mại 300.000₫

Giao hàng toàn quốc

Miễn phí vận chuyển

Đổi trả hàng

Thanh toán đa dạng

Tư vấn 24/7
Hotline: 0886524086

Model		Code					Content
HY -	-						Digital temperature controller
Apperance	48						48(W) X 48(H) ㎜
	72						72(W) X 72(H) ㎜
	8000						96(W) X 96(H) ㎜
	8200						96(W) X 96(H) ㎜
Input		K					K thermocouple
Input		P					RTD Pt 100 Ω (IEC)
Control output			M				Relay contact output
Alarm output				N			None
Alarm output				O			High alarm (Only for HY-8200)
Control direciton					R		Reverse action (Heating control)
Power supply voltage						A	100 - 240 V a.c. 50 - 60 Hz
Range code							Refer to the range and input code

※ Alarm output is available only for HY-8200 model
※ Default set by Proportional control.

· Specification

Input	Thermocouple input	TC-K
	Reference junction compensation accuracy	±1.5 ℃ (within -10 ~ 50 ℃)
	RTD input	Pt100 Ω
	Allowable wiring resistance	10 Ω or less, but the resistance between 3 wires should be the same)
	Input sampling cycle	500 ms
Control output	Output type	Relay : 1C, 250 V a.c. 5A
	Control type	ON/OFF control, Proportional control (Selective by Internal DIP switch)
	Proportional band	1 ~ 10 ℃
	Manual reset (MR)	0 ~ 100 %
	Control cycle	20 sec
	Hysteresis	2 ℃
	Output acting	Reverse acting(heating)
Alarm output	Alarm type	Model HY-8200 only. High limit alarm
Alarm output	Output type	Relay : 1C, 250 V a.c. 5A
Power supply	Power supply voltage	100 - 240 V a.c. 50 - 60Hz
	Voltage fluctuation rate	± 10% of power supply voltage
	Insulation Resistance	Min. 20 MΩ, 500 V d.c.
	Dielectric strength	3,000 V a.c., 50/60 Hz for 1 minute (between 1st and 2nd terminal)
	Power consumption	·HY-48 : 2.1 VA ·HY-72 : 2.5 VA ·HY-8000 : 2.6 VA ·HY-8200 : 3.6 VA
Display accuracy		±1% of FS ±1 Digit
Ambient temperature/humidity		0 ~ 50 ℃, 35 ~ 85 % RH (without condensation)
Storage temperature		-25 ~ 65 ℃
weight		·HY-48 : 156 g ·HY-72 : 164 g ·HY-8000 : 222 g ·HY-8200 : 232 g

[Range and input code]
