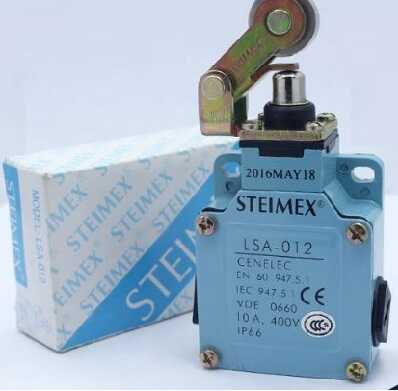

Công tắc hành trình Steimex LSA-003

Giá gốc: 250.000₫

Giá khuyến mại 200.000₫

Specifications

Model LSA LSA-001 LSA-003 LSA-012 LSA-021
Operationg force OF(Max.) 800g 800g 800g 400g-cm
Release force RF(Min.) 400g 400g 400g 100g-cm
Pre-travel PT(Max.) 1.8mm 1.8mm 1.8mm 20degree
Tripping position TP±10% 2.0mm 2.0mm 2.0mm 22.5°
Movement differential MD(Max.) 1.2mm 1.2mm 1.2mm 10°
Over travel OT(Min.) 4.0mm 4.0mm 4.0mm 75°
Total travel TT(Min.) 5.8mm 5.8mm 5.8mm 95°
Rotary indexing         22.5°



Model LSA LSA-031 LSA-061 LSA-071 LSA-081
Operationg force OF(Max.) 400g-cm 150g 150g 150g
Release force RF(Min.) 100g-cm 50g 50g 50g
Pre-travel PT(Max.) 20° 20° 30mm 30mm
Tripping position TP±10% 22.5° 22.5° 22.5° 22.5°
Movement differential MD(Max.) 10° 14° 14° 14°
Over travel OT(Min.) 75° 20mm 20mm 20mm
Total travel TT(Min.) 95° 50mm 50mm 50mm
Rotary indexing   22.5°



Characteristics



Double break INO+INC Force Break snap action
Rated voltage/current 10(4)A, 125, 250VAC/6(2), 380VAC For inductance Load, Cos∮=0.4
Contact resistance 25mΩ max. (initial value)
Insulation resistance 100mΩ min.(at 500VDC)
  1000VAC, 50/60Hz for 1 minute between terminals of the same polarity
  1500VAC, 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts
Dielectric strength 1500VAC, 50/60Hz for 1 minute between each terminal and ground
Electrical endurance 500,000 at 10A 250VAC Resistive
Mechanical life 10,000,000 operations min.(under rated conditions)
Operation speed 5mm/s to 0.5m/s
Waterproof and dust-proof IP66
Rising temperature Max 30 ℃ over ambient temperature at rated voltage/current
Standard EN50041, EN50047, IEC337-1,VDE0660
Operation temperature -5 ℃ - 65 ℃ (with no icing)
Storage temperature -5 ℃– 65 ℃(with no icing)
Humidity 95% RH Max.
Shock Mechanical durable: 1000m/square s min.
  Malfunction:300m/ S2 min.
Vibration frequency Malfunction: 10 to 55Hz 1.5mm double amplitude
Torque of terminal screw 6-8 kgf-cm
Torque of other screw Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare cooper wire spec. ∮2 Max.
Cable Spec. ∮12 Max. (IP65 if use ∮8-9)
