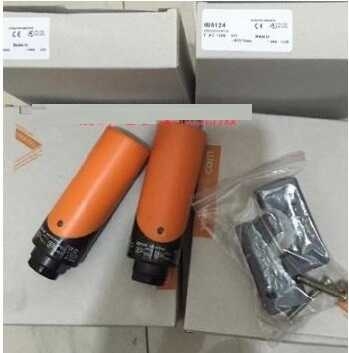

Cảm biến tiệm cận IFM IB5169
Giá gốc: 550.000₫
Giá khuyến mại 500.000₫
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range [mm] | 20 |
| Housing | cylindrical |
| Dimensions [mm] | Ø 34 / L = 95 |
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC [V] | 4.6 |
| Minimum load current [mA] | 4 |
| Max. leakage current [mA] | 1 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 20 |
|---|---|
| Real sensing range Sr [mm] | 20 ± 10 % |
| Operating distance [mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
