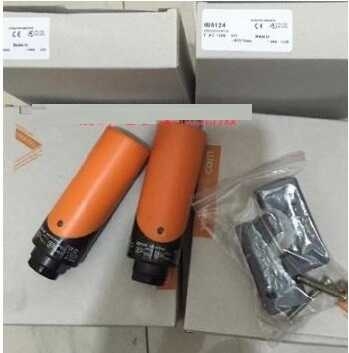

Cảm biến tiệm cận IFM IB0016
Giá gốc: 550.000₫
Giá khuyến mại 500.000₫
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range [mm] | 20 |
| Housing | cylindrical |
| Dimensions [mm] | Ø 34 / L = 98 |
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC [V] | 6 |
| Max. voltage drop switching output AC [V] | 6.5 |
| Minimum load current [mA] | 5 |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Permanent current rating of switching output AC [mA] | 250; (350 (...50 °C)) |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 50 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range [mm] | 20 |
|---|---|
| Real sensing range Sr [mm] | 20 ± 10 % |
| Operating distance [mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection |
