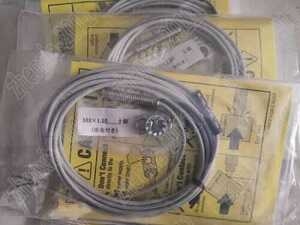

Cảm biến vị trí Metrol SP080A-L

Giá gốc: 1.800.000₫

Giá khuyến mại 1.600.000₫

Type Pin stroke shape/Spring Plungers Type Main Body Shape Bolt Type
Tip shape [Needle] R Contact Environment Standard
Body Material [Stainless Steel] SUS303 Contact Material [Stainless Steel] SUS50~55
Stroke(mm) 3 Contact Point Type Contact type NO
Nominal of Thread (M) M8×1.25 Operating Temperature Range(°C) 0~80
Operating Point(mm) 0.8 Repeatability 0.01mm
Contact Force(N) 6~11 Tip diameter [~ Ø4] φ2.5
Protection Structure IP40 LED Provided
Mechanical Life(x10K times) 300 Operating point details(mm) (From end face) 0.8
RoHS 10 - -



Type

Pin stroke shape/Spring Plungers Type Main Body Shape Bolt Type Tip shape R Contact
Environment Standard Body Material SUS303 Contact Material SUS50~55
Stroke(mm) 3 Contact Point Type Contact type NO Operating Temperature Range(°C) 0::80
Operating Point(mm) 0.8 Repeatability 0.01mm Contact Force(N) 6~11
Tip diameter φ2.5 Protection Structure IP40 Mechanical Life(x10K times) 300
Operating point details(mm) (From end face) 0.8
