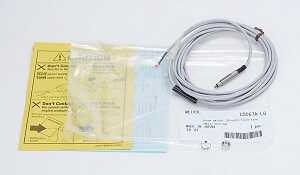

Cảm biến vị trí Metrol CS087A-L
Giá gốc: 1.800.000₫
Giá khuyến mại 1.600.000₫
Type of Contact Switch | Pin stroke shape/Spring Plungers Type | Main Body Shape | Bolt Type |
---|---|---|---|
Shape of Probe | [Needle Type] R Contact | Environment | Standard |
Body Material | [Stainless Steel] 303 Stainless Steel | Contact Probe Material | [Stainless Steel] SUS Hardening HRC50 |
Stroke(mm) | 2.8 | Output Mode | Normally Open N.O. |
Cylindrical O.D.(mm) | - | Thread Nominal (M) | M8×0.75 |
Operating Temperature Range(℃) | 0~80 | Operating Point(mm) | 0.3 |
Repeatability | 0.005mm | Contact Force(N) | 1 |
Contact Lifetime(x 10K times) | 1000 | Tip O.D. | [Up to φ4] φ3.5 |
Protection Structure | IP65 | LED | Provided |
Cord Direction | Direct Advance | Specification Details | For linear hit |
RoHS | 10 | - | - |
