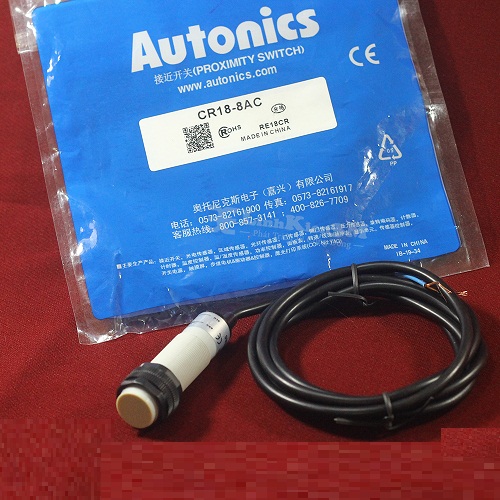

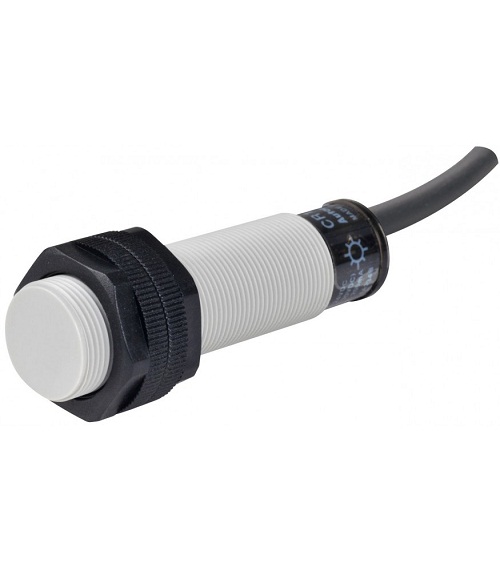

Cảm Biến Tiệm Cận Điện Dung Autonics CR18-8DP2
Giá gốc: 500.000₫
Giá khuyến mại 450.000₫
Model | CR18-8DN CR18-3DP CR18-8DN2 |
CR30-15DN CR30-15DP CR30-15DN2 |
CR18-8AO CR18-8AC |
CR30-15AO CR30-15AC |
|
Sensing distance | 8mm | 15mm | 8mm | 15mm | |
Hysteresis | Max. 20% of sensing distance | ||||
Standard sensing target | 50x50x1mm(lron) | ||||
Sensing distance | 0 to 5.6mm | 0 to 10.5mm | 0 to 5.6mm | 0 to 10.5mm | |
Power supply (Operating voltage) |
12-24VDC( 10-30VDC) | 100-240VAC 50/60Hz(85-264VAC) | |||
Current consumption | Max. 15mA | - | |||
Leakage current | - | Max. 2.2mA | |||
Response frequency†1 | 50 Hz | 20 Hz | |||
Residual voltage | Max. 1.5V | Max. 20V | |||
Affection by Temp. | Max. ±10% for sensing distance at ambient temperature 20°C | ||||
Control output | Max. 200mA | ||||
Insulation resistance | Min. 50MΩ(at 500VDC megger) | ||||
Dielectric strength | 1500VAC 50/60Hz for 1 minute | ||||
Vibration | 1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours | ||||
Shock | 500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times | ||||
Indicator | Operation indicator(red LED) | ||||
Environment | Ambient temperature | -25 to 70°C, storage : -30 to 80°C | |||
Ambient humidity | 35 to 95% RH, storage :35 to 95% RH | ||||
Protection circuit | Reverse polarity protection, Serge protection | Serge protection circuit | |||
Protection | IP66(IEC standard) | IP65(IEC standard) | IP66(IEC standard) | IP65(IEC standard) | |
Cable | ø4, 3-wire, 2m | ø5, 3-wire, 2m | ø4, 2-wire, 2m | ø5, 2-wire, 2m | |
(AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator out diameter: ø1.25) | |||||
Material | Case/Nut: Nikel plated Brass, Washer: Nikel plated Iron, Sensing surface: PBT, Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chlorde(PVC) |
||||
Approval | RoHS | ||||
Weight†2 | Approx. 64g(Approx. 52g) | Approx.84g(Approx. 72g) |
