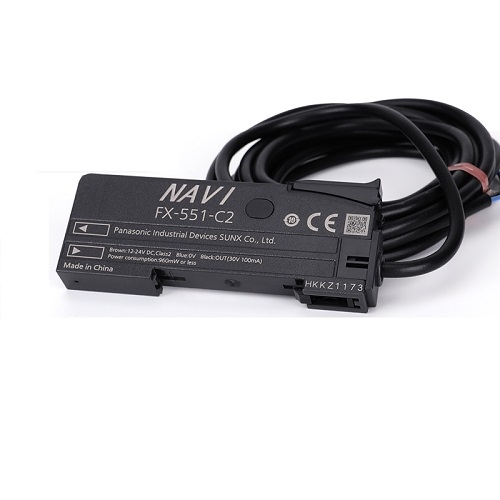

Cảm Biến Quang FX-551-C2 Panasonic
Giá gốc: 850.000₫
Giá khuyến mại 800.000₫
| Item | Specifications |
|---|---|
| Product Number | FX-551-C2 |
| Part Number | FX-551-C2 |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Supply voltage | 12 to 24 V DC +10-15 % Ripple P-P 10 % or less |
| Power consumption | Normal operation : 960 mW or less (current consumption 40 mA or less at 24 V supply voltage) ECO mode : 680 mW or less (current consumption 28 mA or less at 24 V supply voltage) |
| Output | <NPN output type> NPN open-collector transistor ・Maximum sink current : 100 mA ・Applied voltage : 30 V DC or less (between output and 0 V) ・Residual voltage : 2 V or less (at maximum sink current) |
| Output:Output operation | Switchable either Light-ON or Dark-ON by L/D mode |
| Output:Short-circuit protection | Incorporated |
| Response time | FAST : 60μs or less, STD : 250μs or less, LONG : 2ms or less, U-LG : 4ms or less, HYPR : 24ms or less, selectable |
| Sensitivity setting | 2-point teaching / Limit teaching / Full-auto teaching / Manual adjustment |
| Incident light sensitivity setting | Incorporated, 4 steps |
| Incident light intensity display range | FAST / STD : 0 to 4,000, LONG : 0 to 8,000, U-LG / HYPR : 0 to 9,999 |
| Timer function | Incorporated with variable OFF-delay / ON-delay / One-shot / switchable either effective or ineffective |
| Timer function:Timer period | Timer range "ms" : 1 to 9,999 ms approx., 1 ms approx., Timer range "sec." : 1 to 32 s approx., 1 s approx., Timer range "1/10 ms" : 0.1 to 999.9 ms approx., 0.1 ms approx. (Note): When set to LONG, U-LG, HYPR, IP-F or IP-R, the time range cannot be set to 1/10 ms. |
| Different frequency interference prevention function | Incorporated (up to 4 units). Note that the response time varies depending on the setting. F-1 : 0.8 ms or less, F-2 : 0.9 ms or less, F-3 : 1.0 ms or less, F-4 : 1.7 ms or less (Note): This function increases the hysteresis. Check the sensing condition when using the function. |
| Protection | IP40(IEC) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (If 4 to 7 units are mounted in cascade : -10 to +50 ℃ +14 to +122 ℉ or if 8 to 16 units are mounted in cascade : -10 to +45 ℃ +14 to +113 ℉)(No dew condensation or icing allowed), Storage : -20 to +70 ℃ -4 to +158 ℉ |
| Emitting element (modulated) | Red LED (Peak emission wavelength : 660 nm 0.026 mil) |
| Material | Enclosure, Case cover : Polycarbonate, Switch : Polyacetal |
| Cable | 0.2 mm2 3-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (however, supply voltage 12 V DC or more) |
| Weight | Net weight : 55 g approx., Gross weight : 90 g approx. |
| Remark | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉. |
