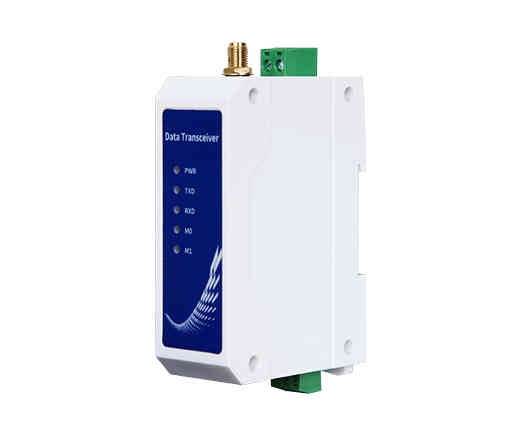

Bộ thu phát dữ liệu RF Lora E96-DTU(400SL30-485)

Giá gốc: 920.000₫

Giá khuyến mại 890.000₫

Model

Mode

Working

Frequency

Transmit

Power

Distance Specifications Recommended Application Scenarios
Hz dbm km
E95-DTU(400F20-485) 410~510M 20 1 Cost-effective

Suitable for short distance, stable

high-speed transmission



Parameter

No. Term Specification Description
1 Size 92*67*30 mm Review installation dimensions for details
2 Weight 95g Weight tolerance 5g
3 Working Temperature -40℃~+85℃ Meet the needs of industrial use
4 Voltage Range 8~28V DC Recommend to use 12V or 24V
5 Interface RS485 3.81 terminal block
6 Baud Rate Default 9600 Baud rate range 1200~115200
7 Address Code Default 0 A total of 65536 address codes can be set



Frequency range and channel number

Model

Defaul

tFrequency

Frequenc

yRange

Channel

Spacing

Number of Channels
Hz Hz Hz
E95-DTU(400F20-485) 433M 410~510M 0.5M 200,Half Duplex



Current parameter

Model Transmitting Current mA Waiting Current mA
12V 24V 12V 24V
E95-DTU(400F20-485) 45 26 10 7
