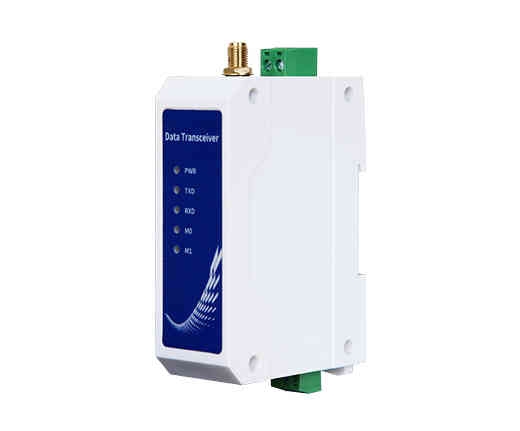

Bộ thu phát dữ liệu RF Lora E95-DTU(400SL22P-232)
Giá gốc: 960.000₫
Giá khuyến mại 920.000₫
Model
| Mode |
Working Frequency |
Transmit Power |
Distance | Specifications | Recommended Application Scenarios |
| Hz | dbm | km | |||
| E95-DTU(400F20-485) | 410～510M | 20 | 1 | Cost-effective |
Suitable for short distance, stable high-speed transmission |
Parameter
| No. | Term | Specification | Description |
| 1 | Size | 92*67*30 mm | Review installation dimensions for details |
| 2 | Weight | 95g | Weight tolerance 5g |
| 3 | Working Temperature | -40℃～+85℃ | Meet the needs of industrial use |
| 4 | Voltage Range | 8～28V DC | Recommend to use 12V or 24V |
| 5 | Interface | RS485 | 3.81 terminal block |
| 6 | Baud Rate | Default 9600 | Baud rate range 1200～115200 |
| 7 | Address Code | Default 0 | A total of 65536 address codes can be set |
Frequency range and channel number
| Model |
Defaul tFrequency |
Frequenc yRange |
Channel Spacing |
Number of Channels |
| Hz | Hz | Hz | ||
| E95-DTU(400F20-485) | 433M | 410～510M | 0.5M | 200，Half Duplex |
Current parameter
| Model | Transmitting Current mA | Waiting Current mA | ||
| 12V | 24V | 12V | 24V | |
| E95-DTU(400F20-485) | 45 | 26 | 10 | 7 |
