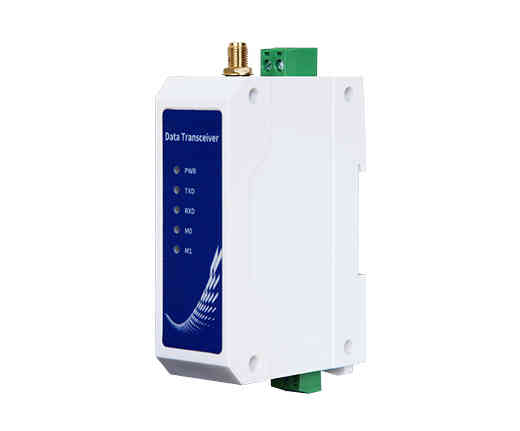

Bộ thu phát dữ liệu RF Lora E95-DTU(400F30-485)
Giá gốc: 500.000₫
Giá khuyến mại 450.000₫
Model Specifications
| Model Specifications | working frequency | transmit power | reference distance | Specifications | Recommended application scenarios |
| Hz | dbm | km | |||
| E95-DTU(900SLxx-485) | 410～510M | 30 | 5 | Cost-effective | Suitable for long-distance, interference-prone environments |
General Specifications
| serial number | project | Specification | illustrate |
| 1 | Product Size | 92*67*30mm | See installation dimensions for details |
| 2 | product weight | 95g | Weight tolerance 5g |
| 3 | Operating temperature | -40℃～+85℃ | Meet the needs of industrial use |
| 4 | voltage range |
DC 8～28V |
DC 12V is recommended |
| 6 | Communication Interface | RS485 | 3.81 Terminals |
| 7 | baud rate | Factory default 9600 | Baud rate range 1200～115200 |
| 8 | address code | Factory default 0 | A total of 65536 address codes can be set |
Frequency range and number of channels
| Model Specifications | default frequency | Frequency range | channel spacing | number of channels |
| Hz | Hz | Hz | ||
| E95-DTU(400F30-485) | 433M | 410～510M | 0.5M | 200, half duplex |
