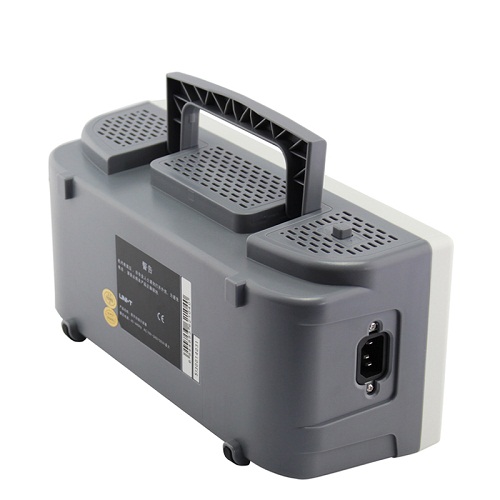

UTD2052CEX 50Mhz máy hiện sóng Uni-Trend
Giá gốc: 6.500.000₫
Giá khuyến mại 6.400.000₫
UTD2052CEX 50Mhz máy hiện sóng Uni-Trend
Thông Số Kỹ Thuật:
- Specification UTD2052CEX
- Channels 2
- Bandwidth 50MHz
- Sample Rate 500MS/s
- Rise Time: ≤14ns
- Memory Depth: 50kpts
- Waveform Acquisition Rate : ≥2000wfms/s
- Vertical Sensitivity: 1mV/div~20V/div
- Timebase Range : 10ns/div~50s/div
- Storage : Setup,Wave,Bitmap
- Trigger Modes: Edge, Pluse, Video, Alternate
- Interface: USB OTG,Pass/Fail
- General : Characteristic
- Power: 100-240VAC, 40-440Hz
- Display: 7 Inches 64K Color TFT LCD, 400×240
- Product Color: White and Gray
- Product Net Weight: 2.2 kg
- Product Size (W×H×D): 306mm ×147mm × 122mm
- Standard Accessories: Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD
- Standard Individual Packing: Gift Box, English Manual
