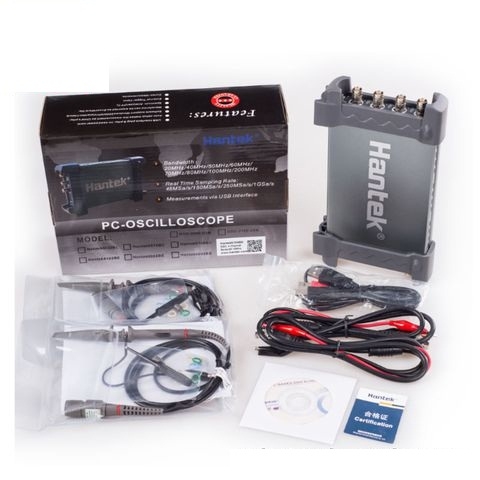

Máy hiện sóng USB Hantek 6204BC

Giá gốc: 5.800.000₫

Giá khuyến mại 5.600.000₫

Model

Hantek6074BC/Hantek6104BC/Hantek6204BC/Hantek6254BC

Bandwidth

70MHz/100MHz/200MHz/250MHz

Channel

4 CH

Real-time Sampling Rate

1GSa/s

Memory Depth

64K

Time Base Precision

±50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1MΩ 25pF

Input Sensitivity

2mV/div~10V/div

Vertical Resolution

8Bit

Vertical Displacement Range

2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe;
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe

DC Gain Accuracy

±3%

Bandwidth Limit

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷,FFT, Invert

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Volume

175mm * 105mm * 25mm

Weight

0.9KG

Accessory

2 passive probes, 2 gator clip lines
