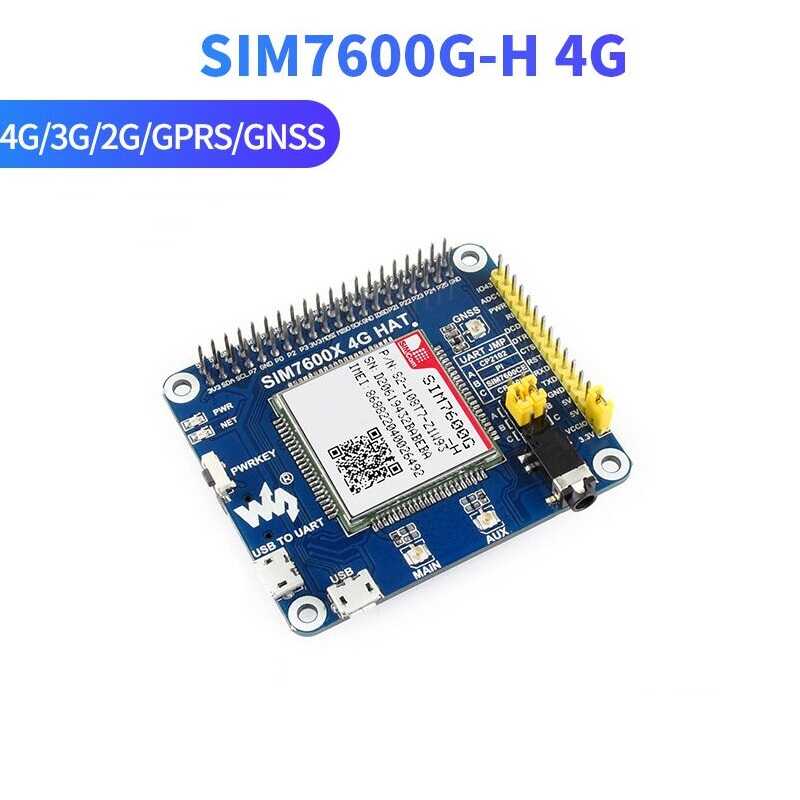

Mạch Waveshare SIM7600G-H 4G / 3G / 2G / GSM / GPRS / GNSS HAT For Raspberry Pi Global Version

Giá gốc: 1.850.000₫

Giá khuyến mại 1.800.000₫

Mạch Waveshare SIM7600G-H 4G / 3G / 2G / GSM / GPRS / GNSS HAT for Raspberry Pi Global Version là phiên bản quốc tế (Global Version) với khả năng tương thích cao với tần số mạng và sóng di động trên toàn thế giới sử dụng Module SIM SIM7600G-H giúp bổ sung hàng loạt các kết nối mới nhất: 4G, 3G, 2G, GSM, GPRS, GNSS cho Raspberry Pi phù hợp với các ứng dụng IoT, Smarthome,...rất phổ biến hiện nay.

Mạch Waveshare SIM7600G-H 4G / 3G / 2G / GSM / GPRS / GNSS HAT for Raspberry Pi Global Version được sản xuất và nhập chính hãng Waveshare với chất lượng linh kiện và gia công tốt, độ bền cao.

Thông số kỹ thuật:

  • Model: Waveshare SIM7600G-H 4G / 3G / 2G / GSM / GPRS / GNSS HAT for Raspberry Pi, LTE CAT4, the Global Version.
  • Power supply: 5VDC
  • Operating voltage: 5VDC/3.3VDC (configured via jumper)
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Onboard CP2102 USB to UART converter, for serial debugging
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • TF card slot for storing data like files, messages, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • 2x LED indicators, easy to monitor the working status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Kích thước lỗ bắt vít: 3.0mm
  • Kích thước mạch: 56.2 x 65.15mm

Bộ sản phẩm bao gồm:

  • SIM7600G-H 4G HAT x1
  • LTE Antenna x1
  • GPS External Antenna (B) x1
  • USB type A plug to micro plug cable x2
  • RPi screws pack (2pcs) x1
