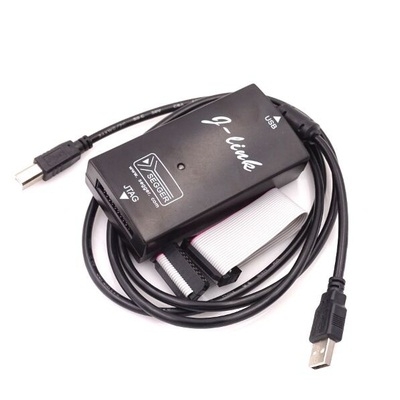

Mạch Nạp Debugger ARM Jlink V8

Giá gốc: 290.000₫

Giá khuyến mại 285.000₫

Mạch Nạp Debugger ARM Jlink V8

Mạch nạp Debugger ARM Jlink V8 được sử dụng để nạp chương trình và debbug lỗi cho hầu hết
các dòng vi điều khiển ARM hiện nay, mạch có thiết kế nhỏ gọn, dễ sử dụng, sử dụng linh kiện
chất lượng cho độ bền và độ ổn định cao nhất.
Thông số kỹ thuật:
Nguồn cấp: 5VDC từ cổng USB.
Giao tiếp USB
Hỗ trợ nạp và Debug vi điều khiển ARM qua hầu hết các chuẩn hiện nay: Jtag, SWD,...
Color: Black
Plastic housing
Supports all ARM7/ARM9 core chips, as well as cortex M3, including Thumb mode
Supports for ADS, IAR, KEIL, WINARM, REALVIEW almost all of the development
environment
Target board voltage range: 1.2V-5.0V
Supports for ARM11 better and faster than JLINK V7
IAR EWARM integrated development environment seamlessly connected JTAG Emulator
Download speeds: ARM7: 600kB / s, ARM9: 550kB / s, through the DCC up to 800 kB / s
The maximum JTAG speed 12 MHz
Monitoring all JTAG signals and target board voltage
Use the USB power supply (but not the target board power supply)
With a USB cable and 20core flat cable
Supports multi-device JTAG serial connection
Package includes:
1 x J-Link emulator
1 x USB cable (93cm)
1 x 20pin cable (14.5cm)
1 x Software CD
