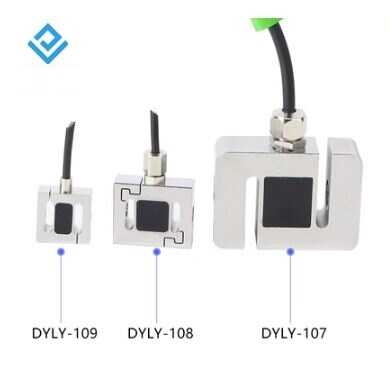

Load cell DYLY-108 (0-100kg)
Giá gốc: 1.800.000₫
Giá khuyến mại 1.700.000₫
DYLY-108 Miniature Tension And Pressure Stainless Steel Load Cell Button Force Sensor 5 10 20 30 50 100 200 300 500 1000 N
Stainless steel material with overload protection, miniature sensor, low height.
-
Sensitivity: 1.0-2.0 mV/V
-
Operating temperature range: -20℃--+80℃
-
Safe Overload: ≤150% F.S
Insulation resistance: ≥5000MΩ
-
Excitation voltage: 5V
Maximum excitation voltage: 15V
-
Input resistance: 350±30Ω
Output resistance: 350±5Ω
-
Protection level: IP66
Material: Stainless steel
