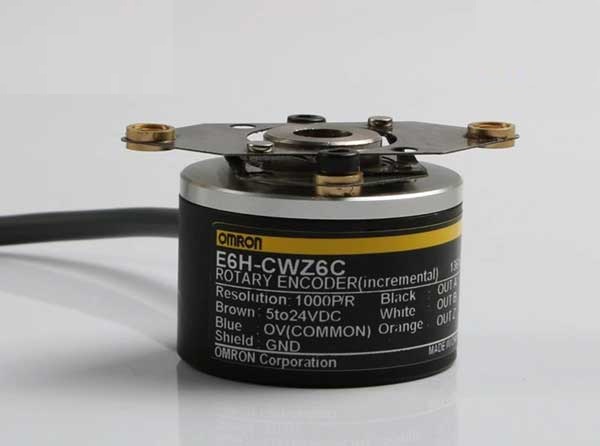

Encoder E6H-CWZ6C 2000P/R OMRON Chính Hãng
Giá gốc: 1.300.000₫
Giá khuyến mại 1.200.000₫
| Categorise | Incremental Hollow-shaft model | |
|---|---|---|
| Diameter | 40 mm dia. | |
| Power supply voltage | 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max. | |
| Current consumption | 100 mA max. | |
| Resolution | 2000 P/R | |
| Inrush current | Approx. 6 A (0.3 ms) | |
| Output phases | A, B and Z | |
| Control output | Output type | Open collector |
| Load power supply voltage | 35 VDC max. | |
| Sink current | 35 mA max. | |
| Residual voltage | 0.7 V max. (at sink current 35 mA) | |
| Max. response frequency | 100 kHz | |
| Phase difference on output | 90±45 ° between A and B (1/4 T ± 1/8 T) | |
| Rise and fall times of output | 1 µs max. (Cable length: 0.5 m, output voltage: 5 V, load resistance: 1 kΩ) | |
| Starting torque | 1.5 mN.m max. | |
| Moment of inertia | 2 x 10**-6 kg.m**2 max. | |
| Shaft loading | Radial: 29.4 N Thrust: 4.9 N |
|
| Max. permissible rotation | 10000 r/min | |
| Ambient temperature | Operating: -10 to 70 ℃ (90% RH max.) (with no icing) Storage: -30 to 85 ℃ (with no icing) |
|
| Ambient humidity | Operating: 95% RH max. (with no condensation) Storage: 95% RH max. (with no condensation) |
|
| Insulation resistance | These data are excluded as the switch is equipped with a capacitor grounding. | |
| Dielectric strength | These data are excluded as the switch is equipped with a capacitor grounding. | |
| Vibration resistance | Destruction: 10 to 500 Hz, 1.5 mm double amplitude or 100 m/s**2 for 2 h each in X, Y, and Z directions | |
| Shock resistance | Destruction: 300 m/s**2 for 11 ms 3 times each in X, Y, and Z directions (excluding any shock to shaft) | |
| Degree of protection | IEC: IP50 | |
| Connection method | Pre-wired models (Cable length: 0.5 m) | |
| Material | Case: Iron Main Unit: Aluminum Flat spring: SUS304 |
|
| Weight | Package: Approx. 120 g | |
| Accessories | Instruction manual | |
