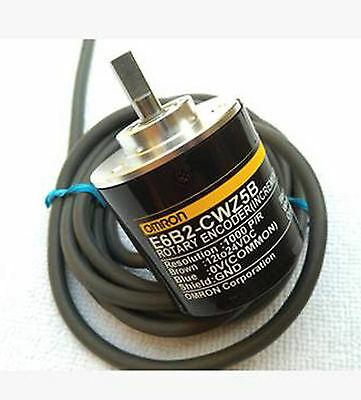

Encoder E6B2 CWZ5B 80P/R OMRON Chính Hãng

Giá gốc: 550.000₫

Giá khuyến mại 500.000₫

Categorise Incremental Shaft model
Diameter 40 mm dia.
Power supply voltage 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max.
Current consumption 100 mA max.
Resolution 80P/R
Inrush current Approx. 9 A (0.3 ms)
Output phases A, B and Z
Control output Output type PNP open collector
Load power supply voltage 30 VDC max.
Source current 35 mA max.
Residual voltage 0.4 V max. (at source current 35 mA)
Starting positional point Equipped
Max. response frequency 50 kHz
Phase difference on output 90±45 ° between A and B (1/4 T ± 1/8 T)
Rise and fall times of output 1 µs max. (Cable length: 2 m max., Sink current 10 mA)
Starting torque 0.98 mN.m max.
Moment of inertia 3 x 10**-7 kg.m**2 max.
Shaft loading Radial: 30 N
Thrust: 20 N
Max. permissible rotation 6000 r/min
Protective circuit Output short-cut protection
Power supply reverse polarity protection
Ambient temperature Operating: -10 to 70 ℃ (with no icing)
Storage: -25 to 85 ℃ (with no icing)
Ambient humidity Operating: 35 to 85% RH (with no condensation)
Storage: 35 to 85% RH (with no condensation)
Insulation resistance Between charged parts and the case: 20 MΩ or higher (500 VDC megger)
Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s**2 double amplitude for 11 min 3 times each in X, Y, and Z directions
Shock resistance Destruction: 1000 m/s**2 for 3 times each in X, Y, and Z directions
Degree of protection IEC: IP50
Connection method Pre-wired models (Cable length: 0.5 m)
Material Case: ABS
Main Unit: Aluminum
Shaft: SUS420J2
Weight Package: Approx. 100 g
Accessories Instruction manual, Couplings, Hex-head spanner
