EL9100 Potential supply terminal 24VDC
Giá gốc: 900.000₫
Giá khuyến mại 850.000₫

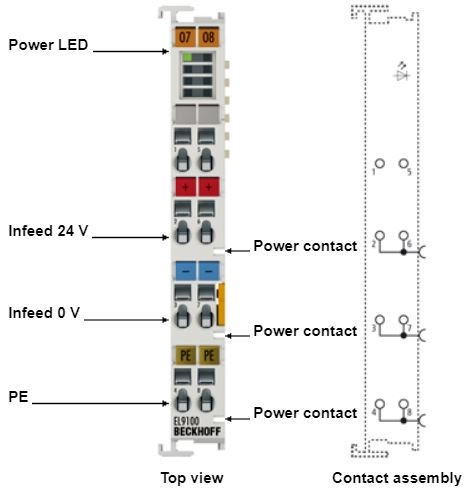

The EL9100 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC.
| Technical data | EL9100 | ES9100 |
|---|---|
| Technology | potential supply terminal |
| Number of outputs | – |
| Current load | ≤ 10 A |
| Power LED | green |
| Defect LED | – |
| Renewed infeed | yes |
| Current consumption E-bus | – |
| Nominal voltage | 24 V DC |
| Integrated fine-wire fuse | – |
| Electrical isolation | 500 V (E-bus/field potential) |
| Diagnostics in the process image | – |
| Reported to E-bus | – |
| PE contact | yes |
| Shield connection | – |
| Connection facility to additional power contact | 1 |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | – |
| Housing width | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact |
yes |
| Side by side mounting on EtherCAT Terminals without power contact |
yes |
| Weight | approx. 50 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX |
