EL4102 2-channel analog output terminal 0-10 V 16 bit
Giá gốc: 3.200.000₫
Giá khuyến mại 3.000.000₫

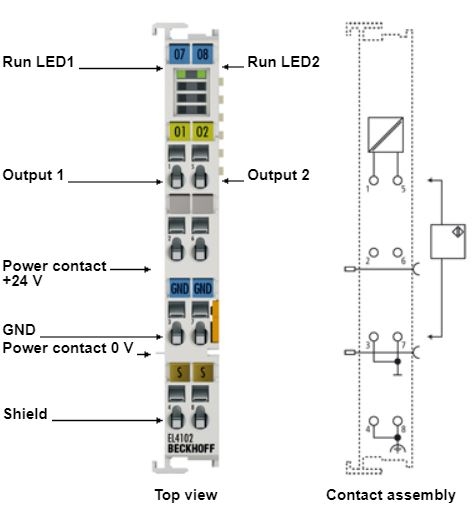

The EL4102 analog output terminal generates signals in the range between 0 and 10 V. The voltage is supplied to the process level with a resolution of 16 bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4102 combines two channels in one housing. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
| Technical data | EL4102 | ES4102 |
|---|---|
| Connection technology | 2-wire, single-ended |
| Number of outputs | 2 |
| Power supply | via the E-bus |
| Signal voltage | 0…10 V |
| Distributed clocks | yes |
| Distributed clock precision | << 1 µs |
| Load | > 5 kΩ (short-circuit-proof) |
| Output error | < 0.1 % (relative to end value) |
| Resolution | 16 bit (incl. sign) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Conversion time | ~ 40 µs |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 210 mA |
| Bit width in the process image | 2 x 16 bit AO output |
| Special features | Watchdog parameterisable; user synchronisation can be activated. |
| Weight | approx. 60 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all ESxxxx terminals |
