EL1889 HD EtherCAT Terminal
Giá gốc: 3.200.000₫
Giá khuyến mại 3.000.000₫

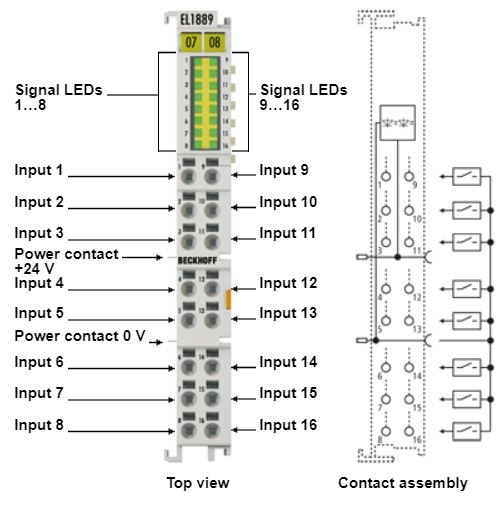

The EL1889 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation device. The EtherCAT Terminal contains 16 channels, whose signal states are displayed by LEDs. The terminal is particularly suitable for space-saving use in control cabinets. By using the single-conductor connection technique, a multi-channel sensor can be connected in the smallest space with a minimum amount of wiring. The power contacts are looped through.
The EL1889 EtherCAT Terminal takes the 24 V power contact as its reference for all inputs. The conductors can be connected without tools in the case of solid wires using a direct plug-in technique.
The HD EtherCAT Terminals (High Density) with increased packing density feature 16 connection points in the housing of a 12 mm terminal block.
| Technical data | EL1889 |
|---|---|
| Connection technology | 1-wire |
| Number of inputs | 16 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| “0” signal voltage | 18…30 V |
| “1” signal voltage | 0…7 V |
| Input current | typ. 3.0 mA |
| Input filter | typ. 3.0 ms |
| Distributed clocks | – |
| Current consumption power contacts | typ. 35 mA |
| Current consumption E-bus | typ. 110 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 16 inputs |
| Configuration | no address or configuration setting |
| Conductor types | solid wire, stranded wire and ferrule |
| Conductor connection | solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver |
| Rated cross-section | solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm² |
| Weight | approx. 55 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable (see documentation) |
| Approvals/markings | CE, UL, ATEX |
| Ex marking | II 3 G Ex nA IIC T4 Gc |
