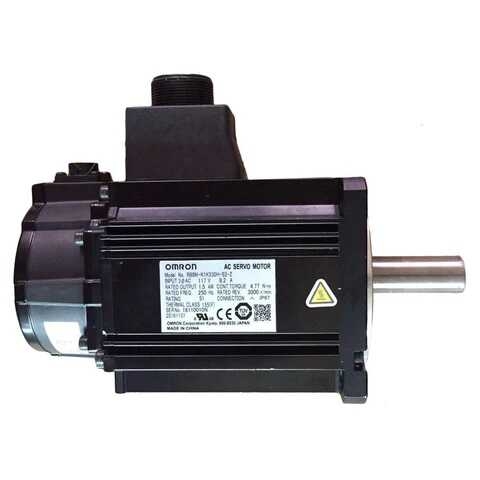

Động cơ AC servo Omron R88M-K3K030H-S2-Z

Giá gốc: 44.500.000₫

Giá khuyến mại 44.000.000₫

Item Specifications
Ambient operating temperature and operating
humidity
0 to 55°C, 85% max. (with no condensation)
Storage ambient temperature and humidity -20 to 65°C, 85% max. (with no condensation)
Operating and storage atmosphere No corrosive gases
Vibration resistance 10 to 60 Hz and at an acceleration of 5.88 m/s2 or less (Not to be
run continuously at a resonance point)
Insulation resistance Between power supply terminals/power terminals and FG terminal:
0.5 MΩ min. (at 500 VDC)
Dielectric strength Between power supply/power line terminals and FG terminal:
1,500 VAC for 1 min at 50/60 Hz
Protective structure Built into panel
International
standard
EC
Directives
EMC Directive EN 55011, EN 61000-6-2, IEC 61800-3
Low Voltage
Directive
EN 61800-5-1
Machinery
Directives
EN954-1 (Cat.3), EN ISO 13849-1: 2008 (Category 3) (PLc,d), ISO
13849-1: 2006 (Category 3) (PLc,d), EN61508 (SIL2), EN62061
(SIL2), EN61800-5-2 (STO), IEC61326-3-1 (SIL2)
UL standards UL 508C
CSA standards CSA C22.2 No. 14
Korean Radio Regulations (KC) Certified





Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
              perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
              Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
              damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
              Confirm the Manual No. that is listed in Related Manuals.
