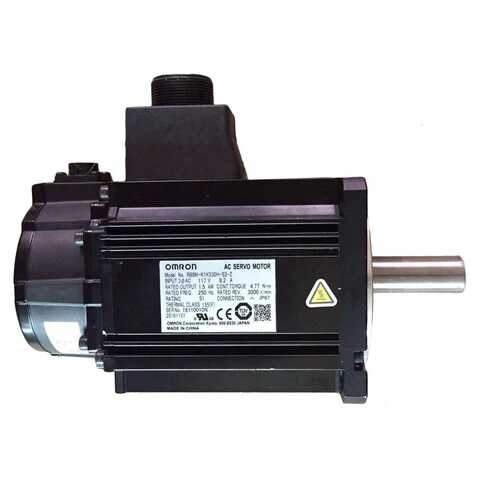

Động cơ AC servo Omron R88M-K1K530F-S2-Z
Giá gốc: 33.500.000₫
Giá khuyến mại 33.000.000₫
| Item | Specifications | ||
|---|---|---|---|
| Ambient operating temperature and operating humidity |
0 to 55°C, 85% max. (with no condensation) | ||
| Storage ambient temperature and humidity | -20 to 65°C, 85% max. (with no condensation) | ||
| Operating and storage atmosphere | No corrosive gases | ||
| Vibration resistance | 10 to 60 Hz and at an acceleration of 5.88 m/s2 or less (Not to be run continuously at a resonance point) |
||
| Insulation resistance | Between power supply terminals/power terminals and FG terminal: 0.5 MΩ min. (at 500 VDC) |
||
| Dielectric strength | Between power supply/power line terminals and FG terminal: 1,500 VAC for 1 min at 50/60 Hz |
||
| Protective structure | Built into panel | ||
| International standard |
EC Directives |
EMC Directive | EN 55011, EN 61000-6-2, IEC 61800-3 |
| Low Voltage Directive |
EN 61800-5-1 | ||
| Machinery Directives |
EN954-1 (Cat.3), EN ISO 13849-1: 2008 (Category 3) (PLc,d), ISO 13849-1: 2006 (Category 3) (PLc,d), EN61508 (SIL2), EN62061 (SIL2), EN61800-5-2 (STO), IEC61326-3-1 (SIL2) |
||
| UL standards | UL 508C | ||
| CSA standards | CSA C22.2 No. 14 | ||
| Korean Radio Regulations (KC) | Certified | ||
Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
Confirm the Manual No. that is listed in Related Manuals.
