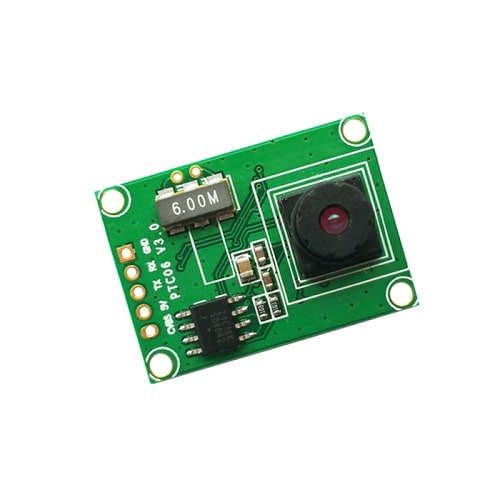

Camera RS232 PTC06
Giá gốc: 550.000₫
Giá khuyến mại 500.000₫
Thông Số Kỹ Thuật:
- Module Board Size: 28mmx20mmx9mm (not socket height)
- IC VC0706 (VC0706 3.3V Camera Module TTL/UART)
- Image Sensor Type: CMOS 1/4 inch
- Image pixels: 300,000
- Pixel Size: 5.6umx5.6um
- Output format: Standard JPEG / M-JPEG
- White Balance: Automatic
- Exposure: Automatic
- Gain: Automatic
- Shutter: Electronic rolling shutter
- SNR: 45DB
- Dynamic Range: 60DB
- Max Analog Gain: 16DB
- Frame Dayton: 640x480 30fps
- Scan mode: progressive scan
- Viewing Angle: 120 degrees (optional)
- Monitoring Distance: 5 meters (maximum 15 meters, adjustable)
- Image size: Default VGA (640x480) optional QVGA (320x240)
- Night vision infrared light: Optional
- Serial rate: Default 115200
- Operating Current: 100mA
- Working voltage: DC3.3V-5V (recommended 5V)
- Communication Interface: TTL / URAT (TX, RX, GND)
- TX(Ca) -- RX (MCU)
- RX(Ca) -- TX (MCU)
