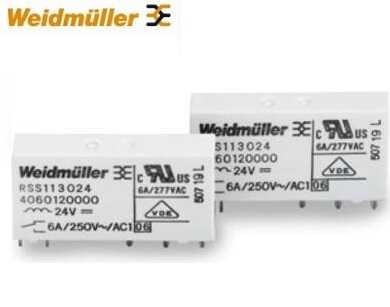

Relay Weidmüller RSS110024

Giá gốc: 200.000₫

Giá khuyến mại 180.000₫

Giao hàng toàn quốc

Miễn phí vận chuyển

Đổi trả hàng

Thanh toán đa dạng

Tư vấn 24/7
Hotline: 0886524086

Type	RSS110024
Coil nominal voltage	24 V DC
Max. pick-up voltage	16.8 V DC
Resistance (coil)	3388 Ω
Contact type	1 change-over
Contact material	AgSnO
Switching voltage (max.)	250 V DC/AC
Max. switching capacity	1500 VA, 144 W
Creepage distance (coil/clips)	5.5 mm
Connection	Connector
Response time	8 ms
Fall time	4 ms
Features	w/o test button
IP rating	IP67
Min. temperature	-40 °C
Max. temperature	+85 °C
Weight	5 g
Factory colour	White
Width	5 mm
Height	28 mm
Depth	15 mm
Dim	(W x H x D) 5 x 28 x 15 mm
Content	20 pc(s)
Product type	Relay
