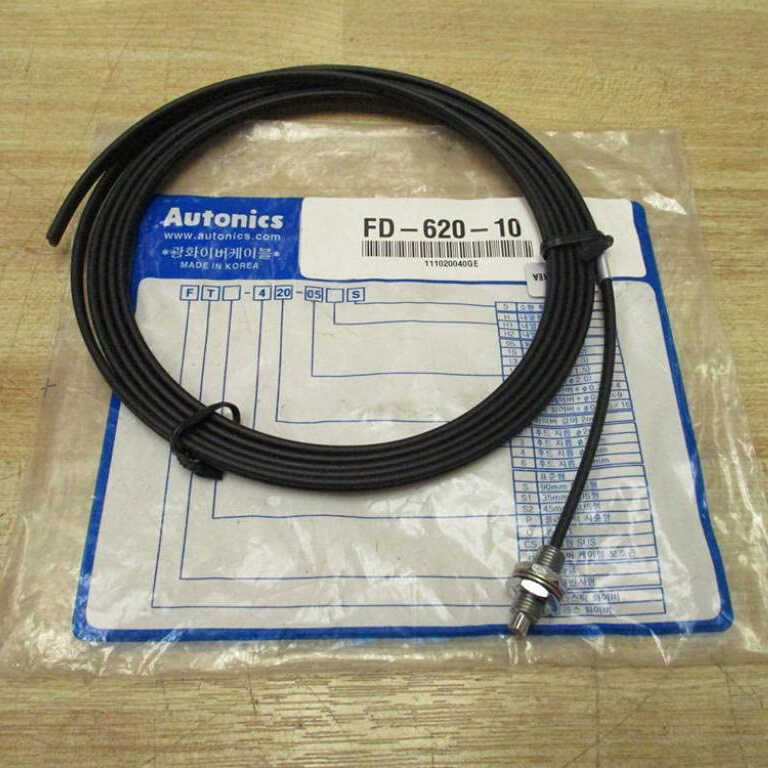

Cáp sợi quang Autonics FT-420-10
Giá gốc: 500.000₫
Giá khuyến mại 450.000₫
Type | Standard type(bolt type) |
---|---|
Sensing distance | 500mm |
Min. sensing target | Ø1mm |
Allowable bend radius | R30 |
Cable length | 2m |
Free cut | Free cut |
Environment_Ambient temperature | -40 to 70℃ |
Sensing type | Through-beam type |
※The sensing distance is a standard for red LED of BF4 Series and 10% of red LED is applied when it is green LED. It is applied to 40% of sensing distance for BF3RX.
※Min. sensing target is a value measured opaque material in accurate output status and the sensing distance is different with the rated sensing distance.
※Free cut type's sensing distance can be shortened about max. 20% than the normal according to condition of the cable. [(FC-3) should be used for cutting fiber cable.]
※FT-420-13 was discontinued. FT-420-13B is replacement.
※Glass type is for BF5, BF4 Series.
