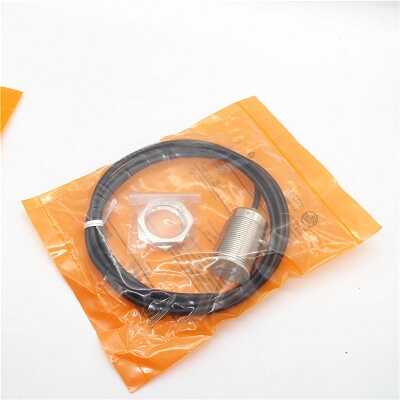

Cảm biến tiệm cận IFM IIC237
Giá gốc: 900.000₫
Giá khuyến mại 860.000₫
| Electrical design | PNP | ||||
| Output function | normally open | ||||
| Sensing range [mm] | 15 | ||||
| Housing | threaded type | ||||
| Dimensions [mm] | M30 x 1.5 / L = 45 | ||||
| Application | |||||
|---|---|---|---|---|---|
| Special feature | Drag chain suitability; Increased sensing range; Full-metal housing | ||||
| Application | Use in machine tools, coolants and lubricants | ||||
| Pressure rating [bar] | 10 | ||||
| Note on pressure rating |
|
||||
| Electrical data | |||||
| Operating voltage [V] | 10…30 DC | ||||
| Current consumption [mA] | < 10 | ||||
| Protection class | III | ||||
| Reverse polarity protection | yes | ||||
| Outputs | |||||
| Electrical design | PNP | ||||
| Output function | normally open | ||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||
| Permanent current rating of switching output DC [mA] | 100 | ||||
| Switching frequency DC [Hz] | 50 | ||||
| Short-circuit protection | yes | ||||
| Overload protection | yes | ||||
| Detection zone | |||||
| Sensing range [mm] | 15 | ||||
| Real sensing range Sr [mm] | 15 ± 10 % | ||||
| Operating distance [mm] | 0…12.15 | ||||
| Increased sensing range | yes | ||||
| Accuracy / deviations | |||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminium: 0.5 / copper: 0.2 | ||||
| Hysteresis [% of Sr] | 3…15 | ||||
| Switch point drift [% of Sr] | -10…10 | ||||
| Operating conditions | |||||
| Ambient temperature [°C] | -40…85 | ||||
| Protection | IP 65; IP 66; IP 67; IP 68; IP 69K | ||||
| Mechanical data | |||||
| Weight [g] | 160.7 | ||||
| Housing | threaded type | ||||
| Mounting | flush mountable | ||||
| Dimensions [mm] | M30 x 1.5 / L = 45 | ||||
| Thread designation | M30 x 1.5 | ||||
| Materials | stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: brass white bronze coated | ||||
| Tightening torque [Nm] | 80 | ||||
| Drag chain suitability | yes | ||||
| Drag chain suitability |
|
||||
| Full-metal housing | yes | ||||
| Displays / operating elements | |||||
| Display |
|
||||
| Accessories | |||||
| Accessories (supplied) |
|
||||
