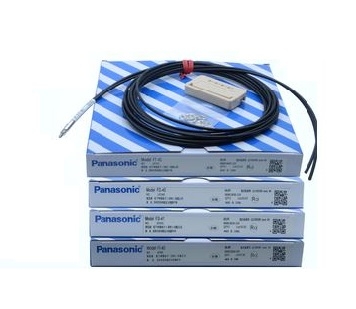

Cảm biến sợi quang Panasonic FT-S31W
Giá gốc: 1.500.000₫
Giá khuyến mại 1.395.000₫
Item | Specifications |
---|---|
Product Number | FT-S31W |
Part Number | FT-S31W |
Sensing mode | Thru-beam type |
Fiber type | Cylindrical type |
Fiber head dia. | dia. 3 mm |
Fiber head length | 10 mm |
With sleeve | No |
Beam direction | Top-view |
Beam axis dia./ Spot diameter | dia. 1 mm |
Beam axis accuracy : Beam axis position | 150 micro m |
Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
Fiber cable length | 2 m |
Allowable bending radius | R1 mm |
Free-cut | Available |
Mounting lens | Not available |
Mounting protective tube | Not available |
Application | General-purpose |
Environmental resistance : Protection | IP67 |
Environmental resistance : Ambient temperature MAX | 60 degrees |
Environmental resistance : Ambient temperature MIN | -40 degrees |
Sensing range(STD) | 800 mm 31.496 in (FX-500 series) |
Sensing range(HYPR) | 3,300 mm 129.921 in (FX-500 series) |
Sensing range(U-LG) | 1,900 mm 74.803 in (FX-500 series) |
Sensing range(LONG) | 1,400 mm 55.118 in (FX-500 series) |
Sensing range(FAST) | 490 mm 19.291 in (FX-500 series) |
Sensing range(H-SP) | 160 mm 6.299 in (FX-500 series) |
