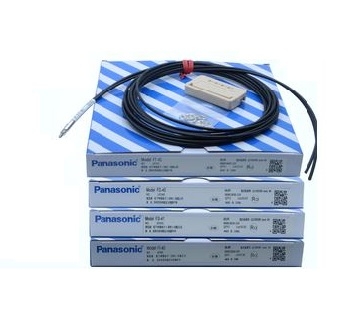

Cảm biến sợi quang Panasonic FT-S30
Giá gốc: 950.000₫
Giá khuyến mại 930.000₫
| Product Number | FT-S30 |
| Part Number | FT-S30 |
| Product | Thru-beam type Fiber |
| Details | Super Quality Fiber |
| Product name | Super Quality Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-S30 |
| Part Number | FT-S30 |
| Sensing mode | Thru-beam type |
| Fiber type | Cylindrical type |
| Fiber head dia. | dia. 3 mm |
| Fiber head length | 10 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 2 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Not available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Optical transmission loss | plus or minus 10 % |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 1,200 mm 47.244 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 2,200 mm 86.614 in (FX-500 series) |
| Sensing range（LONG） | 1,700 mm 66.929 in (FX-500 series) |
| Sensing range（FAST） | 530 mm 20.866 in (FX-500 series) |
| Sensing range（H-SP） | 190 mm 7.480 in (FX-500 series) |
