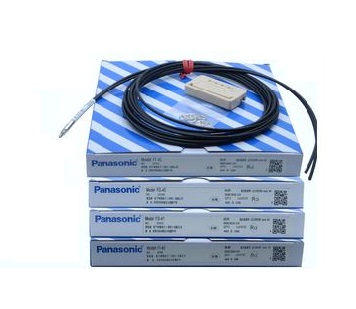

Cảm biến sợi quang Panasonic FT-S20
Giá gốc: 1.300.000₫
Giá khuyến mại 1.160.000₫
SPECIFICATION
| Item | Performance characteristics |
|---|---|
| Sensing Mode | Thru-beam type |
| Fiber Type | Cylindrical type |
| Fiber Head Dia | dia. 1.5 mm |
| Fiber Head Length | 10 mm |
| With Sleeve | No |
| Beam Direction | Top-view |
| Beam Axis Dia. / Spot Diameter | dia. 0.5 mm |
| Beam Axis Accuracy: Beam Axis Position | 150 micro m |
| Beam Axis Accuracy: Beam Axis Inclination | plus or minus 2 degrees |
| Fiber Cable Length | 2 m |
| Allowable Bending Radius | R2 mm |
| Free-Cut | Not available |
| Mounting Lens | Not available |
| Mounting Protective Tube | Not available |
| Applications | General-purpose |
| Optical Transmission Loss | plus or minus 10 % |
| Environmental Resistance: Protection | IP67 |
| Environmental Resistance: Ambient Temperature (Max.) | 80 degrees |
| Environmental Resistance: Ambient Temperature (Min.) | -55 degrees |
| Sensing Range (STD） | 400 mm 15.748 in (FX-500 series) |
| Sensing Range (HYPR） | 1,350 mm 53.150 in (FX-500 series) |
| Sensing Range (U-LG） | 810 mm 31.890 in (FX-500 series) |
| Sensing Range (Long） | 650 mm 25.591 in (FX-500 series) |
| Sensing Range (Fast） | 210 mm 8.268 in (FX-500 series) |
| Sensing Range (H-SP） | 75 mm 2.953 in (FX-500 series) |
