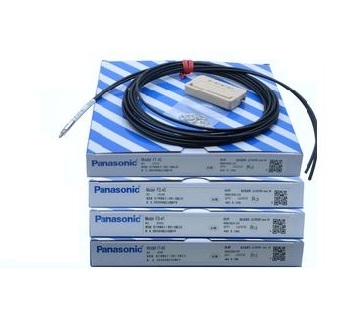

Cảm biến sợi quang Panasonic FT-S11
Giá gốc: 1.500.000₫
Giá khuyến mại 1.300.000₫
| Product Number | FT-S11 |
| Part Number | FT-S11 |
| Product | Thru-beam type Fiber |
| Details | Cylindrical Type Fiber |
| Product name | Cylindrical Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-S11 |
| Part Number | FT-S11 |
| Sensing mode | Thru-beam type |
| Fiber type | Cylindrical type |
| Fiber head dia. | dia. 1 mm |
| Fiber head length | 6 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 0.25 mm |
| Fiber cable length | 500 mm |
| Allowable bending radius | R2 mm |
| Free-cut | Not available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 90 mm 3.543 in (FX-500 series) |
| Sensing range（HYPR） | 350 mm 13.780 in (FX-500 series) |
| Sensing range（U-LG） | 210 mm 8.268 in (FX-500 series) |
| Sensing range（LONG） | 160 mm 6.299 in (FX-500 series) |
| Sensing range（FAST） | 60 mm 2.362 in (FX-500 series) |
| Sensing range（H-SP） | 19 mm 0.748 in (FX-500 series) |
