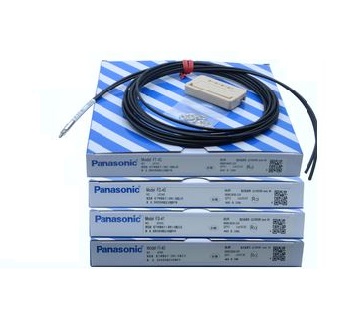

Cảm biến sợi quang Panasonic FT-R41W
Giá gốc: 1.800.000₫
Giá khuyến mại 1.700.000₫
| Product Number | FT-R41W |
| Part Number | FT-R41W |
| Product | Thru-beam type Fiber |
| Details | Square Head type Fiber |
| Product name | Square Head Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-R41W |
| Part Number | FT-R41W |
| Sensing mode | Thru-beam type |
| Fiber type | Square head type |
| Fiber head dia. | M4 |
| Fiber head length | W7 x H9 x D13.9 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Semi-custom | Available |
| Mounting lens | Not available |
| Applicable lens | FX-LE2 |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 800 mm 31.496 in (FX-500 series) |
| Sensing range（HYPR） | 3,200 mm 125.984 in (FX-500 series) |
| Sensing range（U-LG） | 1,800 mm 70.866 in (FX-500 series) |
| Sensing range（LONG） | 1,400 mm 55.118 in (FX-500 series) |
| Sensing range（FAST） | 460 mm 18.110 in (FX-500 series) |
| Sensing range（H-SP） | 150 mm 5.906 in (FX-500 series) |
