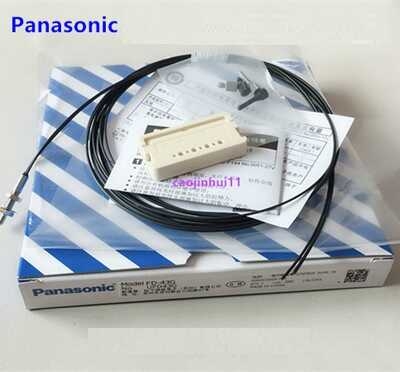

Cảm biến sợi quang Panasonic FD-61S M6
Giá gốc: 980.000₫
Giá khuyến mại 920.000₫
Spec Detail
| Item | Specifications |
|---|---|
| Product Number | FD-61S |
| Part Number | FD-61S |
| Sensing mode | Reflective type |
| Fiber type | Sleeve type |
| Fiber head dia. | M6 |
| Fiber head length | 15 mm |
| With sleeve | Yes |
| Sleeve dia. | dia. 2.5 mm |
| Sleeve length | 40 mm |
| Sleeve bending radius | R10 mm R0.394 in |
| Beam direction | Top-view |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | FDP-500,FDP-1000,FDP-1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 420 mm 16.535 in (FX-500 series) |
| Sensing range（HYPR） | 1,200 mm 47.244 in (FX-500 series) |
| Sensing range（U-LG） | 790 mm 31.102 in (FX-500 series) |
| Sensing range（LONG） | 660 mm 25.984 in (FX-500 series) |
| Sensing range（FAST） | 220 mm 8.661 in (FX-500 series) |
| Sensing range（H-SP） | 75 mm 2.953 in (FX-500 series) |
