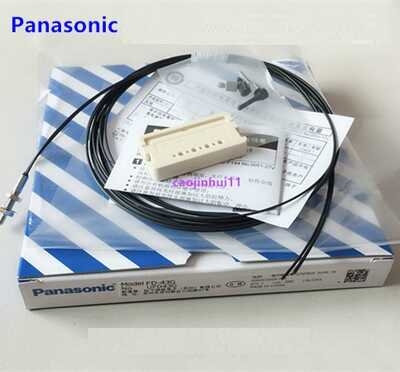

Cảm biến sợi quang Panasonic FD-61 M6
Giá gốc: 650.000₫
Giá khuyến mại 600.000₫
Spec Detail
| Item | Specifications |
|---|---|
| Product Number | FD-61 |
| Part Number | FD-61 |
| Sensing mode | Reflective type |
| Fiber type | Threaded type |
| Fiber head dia. | M6 |
| Fiber head length | 17 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | FDP-500,FDP-1000,FDP-1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 450 mm 17.717 in (FX-500 series) |
| Sensing range（HYPR） | 1,400 mm 55.118 in (FX-500 series) |
| Sensing range（U-LG） | 840 mm 33.071 in (FX-500 series) |
| Sensing range（LONG） | 670 mm 26.378 in (FX-500 series) |
| Sensing range（FAST） | 200 mm 7.874 in (FX-500 series) |
| Sensing range（H-SP） | 70 mm 2.756 in (FX-500 series) |
