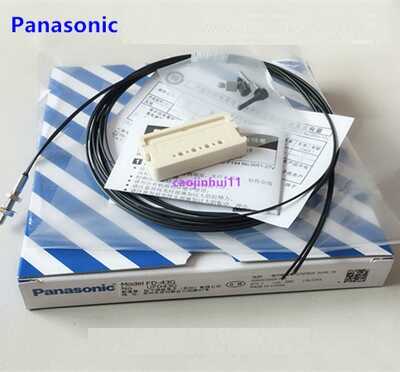

Cảm biến sợi quang Panasonic FD-45G M4
Giá gốc: 550.000₫
Giá khuyến mại 420.000₫
| Item | Specifications |
|---|---|
| Product Number | FD-45G M4 |
| Part Number | FD-45G M4 |
| Sensing mode | Reflective type |
| Fiber type | Threaded type |
| Fiber head dia. | M4 |
| Fiber head length | 17 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Not available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Optical transmission loss | plus or minus 10 % |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 520 mm 20.472 in (FX-500 series) |
| Sensing range（HYPR） | 1,550 mm 61.024 in (FX-500 series) |
| Sensing range（U-LG） | 900 mm 35.433 in (FX-500 series) |
| Sensing range（LONG） | 740 mm 29.134 in (FX-500 series) |
| Sensing range（FAST） | 260 mm 10.236 in (FX-500 series) |
| Sensing range（H-SP） | 90 mm 3.543 in (FX-500 series) |
