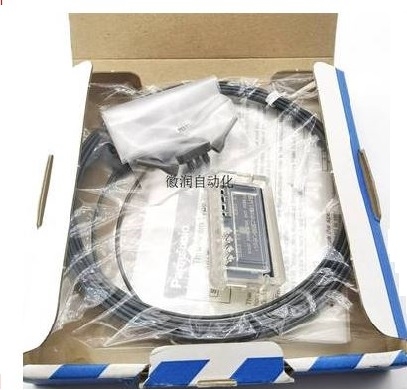

Cảm biến quang Panasonic FT-E13
Giá gốc: 2.300.000₫
Giá khuyến mại 2.000.000₫
| Product Number | FT-E13 |
| Part Number | FT-E13 |
| Product | Thru-beam type Fiber |
| Details | Cylindrical Type Fiber |
| Product name | Sleeve Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-E13 |
| Part Number | FT-E13 |
| Sensing mode | Thru-beam type |
| Fiber type | Sleeve type Ultra-small diameter |
| Fiber head dia. | dia. 3 mm |
| Fiber head length | 15 mm |
| With sleeve | Yes |
| Sleeve dia. | dia. 0.25 mm |
| Sleeve length | 5 mm |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 0.125 mm |
| Fiber cable length | 1 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 15 mm 0.591 in (FX-500 series) |
| Sensing range（HYPR） | 52 mm 2.047 in (FX-500 series) |
| Sensing range（U-LG） | 30 mm 1.181 in (FX-500 series) |
| Sensing range（LONG） | 24 mm 0.945 in (FX-500 series) |
| Sensing range（FAST） | 8 mm 0.315 in (FX-500 series) |
| Sensing range（H-SP） | 2 mm 0.079 in (FX-500 series) |
