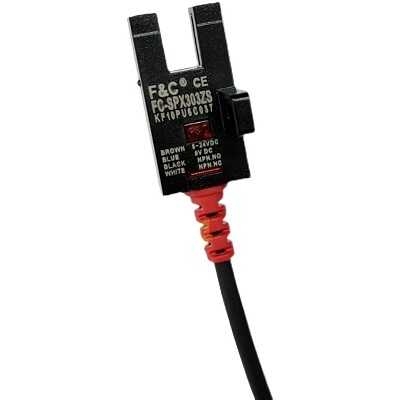

Cảm biến quang F&C FC-SPX304
Giá gốc: 260.000₫
Giá khuyến mại 200.000₫
|
Emitting light |
Red LED:630nm |
|
Operating voltage |
DC:5~24VDC±10%(Ripple P-P:10%Max) |
|
Current consumption |
15mA Max |
|
Load current |
100mA Max at DC 24V |
|
Output type |
N=NPN.NO P=PNP.NPN |
|
Protection circuit |
Reversed supply ciruit protection,short citcuit protection output |
|
Response time |
0.3 ms Max |
|
Insulation resistance |
20M Ωmin.(DC500V) |
|
Voltage withstandatility |
AC1000V 60Hz for 60 Sec |
|
Operating temperature |
-10°C~+45°C(No freezing allowed |
|
Ambient hunidity |
35%~95%RH |
|
Storage temperarure |
-10°C~+55°C(No freezing allowed ) |
|
Storage hunidity |
35%~95%RH |
|
Material |
ABS |
|
Wiring method |
φ2.6×2M/4-wires/φ4.2×2M/3-wires/φ4.2×2M/4-wires |
|
Protection degree |
IP66 |
|
Weight |
Approx.20g, not include cable |
